Humminbird 9 M360 2DDI Y Cable for Connecting MEGA 360 and MDI Transducer

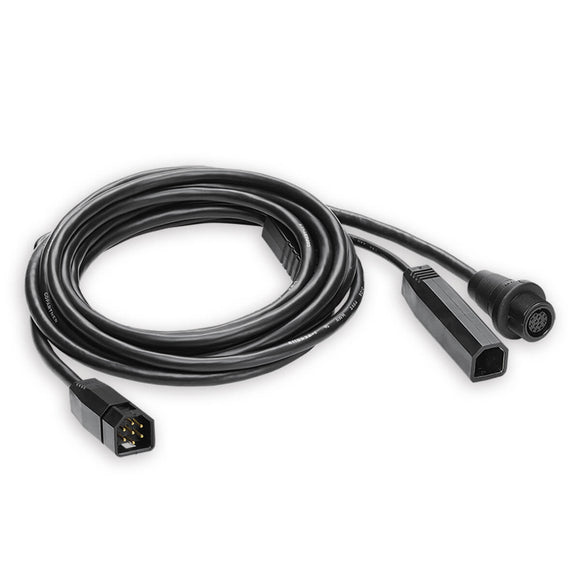

Humminbird 9 M360 2DDI Y Cable (MEGA 360 + MDI Splitter)

720107-1
  • We have 3 in stock.
Shipping calculated at checkout.
Ships from Winnipeg Fast Canadian Shipping
No Customs Fees for Canadians
Authorized Service Center We Fix What We Sell

Compatibility:

✅ Compatible HELIX Units
Designed for HELIX G3N / G4N models with MEGA Imaging+:
• HELIX 8, 9, 10, 12, 15 (G3N / G4N)
• HELIX 7 G4N (MEGA SI or MDI models)

✅ Compatible Transducers
• Side A: MEGA 360 Imaging Transducer
• Side B: Built-in MEGA DI (Minn Kota) OR External MDI Transducer
• Side B: Dual Spectrum CHIRP (2D) Transducer

❌ NOT Compatible
• SOLIX / APEX Series (Requires 14-pin Y-Cable: 14 M360 2DDI Y)
• HELIX G1 or G2 (Do not support MEGA 360)
• Non-MEGA 360 (Original 360 uses different cables)

The MEGA 360 "Combo" Cable

To get the most out of your boat's front end, you need both 360 Imaging AND traditional sonar. The Humminbird 9 M360 2DDI Y Cable splits the 7-pin transducer port on your HELIX unit, allowing you to connect a **MEGA 360** transducer and a separate **2D/MDI** source (like the Built-In MEGA DI on your Minn Kota motor) simultaneously.

How It Works:

Without this cable, you would have to unplug your trolling motor's sonar to plug in the 360. This Y-cable merges the signals so your HELIX unit displays both the rotating 360 view and the depth/down imaging from below the motor on split screens.

📦 Product Specs:

  • Part Number: 720107-1 (9 M360 2DDI Y)
  • Unit Connection: 7-Pin Plug (HELIX)
  • Transducer 1 Input: MEGA 360 Imaging
  • Transducer 2 Input: 7-Pin 2D/MDI (Built-in MDI or External)
  • Length: 30 Inches
🍁 Why Buy from PTG Electronics?
We are Canada’s specialized marine electronics hub and authorized service center. Unlike American retailers, we stock our inventory in Winnipeg, Manitoba. You get your gear faster with zero customs fees or hidden duties.

Frequently Asked Questions

Will this give me Side Imaging from my trolling motor?

No. This cable is specifically wired for MEGA 360 + 2D/Down Imaging. It does not carry Side Imaging from the trolling motor transducer. The MEGA 360 provides the side-looking view.

Can I use this on my SOLIX?

No. The SOLIX and APEX units use a 14-pin connector. This cable has 7-pin connectors designed for the HELIX series. You need the 14 M360 2DDI Y for a SOLIX.

Do I need this if I only have the MEGA 360?

No. If you only want to see the 360 view and do not care about depth readings or Down Imaging while moving, you can plug the MEGA 360 directly into the head unit. However, most anglers want depth data on screen, which requires this Y-cable to add the second transducer.
