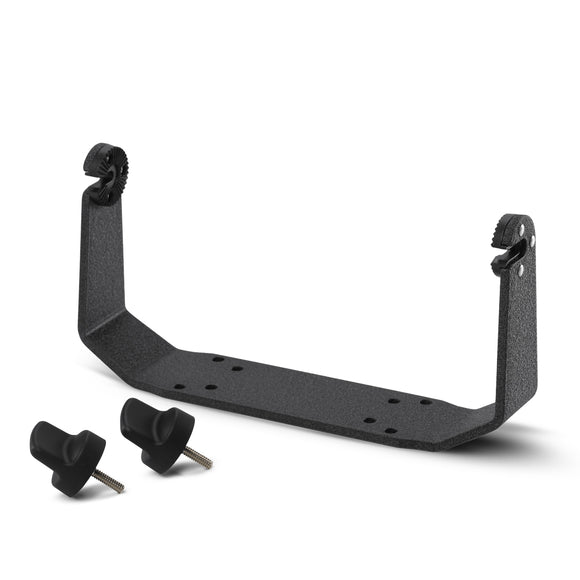

Humminbird GM H7R2 Tall Gimbal Mount Bracket for HELIX 7 G4N

Humminbird GM H7R2 Gimbal Mount (HELIX 7 G4N / G3N)

740199-1
  • We have 1 in stock.
Shipping calculated at checkout.
Ships from Winnipeg Fast Canadian Shipping
No Customs Fees for Canadians
Authorized Service Center We Fix What We Sell

Compatibility:

✅ Compatible Humminbird Units
Designed for the "Networking" (N) models which have bulkier cable connectors:
• HELIX 7 CHIRP G4N (All Models)
• HELIX 7 CHIRP G3N (All Models)
• Backward compatible with G2/G2N and G3 (Non-N), but sits higher than stock.

❌ NOT Compatible
• HELIX 5 Series (Too narrow)
• HELIX 8, 9, 10, 12 (Too wide)
• HELIX 7 G1 (Fits physically, but bracket is taller than necessary)

The "Tall" Bracket for Networking

Not all HELIX 7 brackets are created equal. The Humminbird GM H7R2 is the updated, taller gimbal mount designed specifically for HELIX 7 G4N (Networking) models. Because the G4N units have extra heavy-duty cable collectors, they require this extra height to tilt properly without the connectors hitting the boat or ice pack.

Why you need the R2:

If you try to mount a new G4N unit on an old G2 bracket, you will find you cannot adjust the screen angle because the cables bottom out. This bracket gives you the necessary clearance for full articulation.

📦 Product Specs:

  • Part Number: 740193-1 (GM H7R2)
  • Design: High-Clearance U-Bracket
  • Material: Heavy Duty Composite
  • Includes: Bracket & Mounting Knobs
🍁 Why Buy from PTG Electronics?
We are Canada’s specialized marine electronics hub and authorized service center. Unlike American retailers, we stock our inventory in Winnipeg, Manitoba. You get your gear faster with zero customs fees or hidden duties.

Frequently Asked Questions

What is the difference between this and the standard GM H7?

Height. The GM H7R2 is roughly 1-inch taller than the original GM H7. This extra height is critical for the G4N models because the Ethernet and NMEA cables require more room at the back of the unit.

Does this come with the knobs?

Yes. The kit includes the gimbal bracket and the two side mounting knobs (ratchet style) to secure the unit.

Can I use this on my ice fishing shuttle?

Yes. This bracket uses the standard Humminbird 3-hole mounting pattern found on almost all portable shuttles and ice packs. It is actually the preferred bracket for ice fishing as it allows you to tilt the screen back further for better viewing while standing.
