XPTH-9-HW-MSI-T

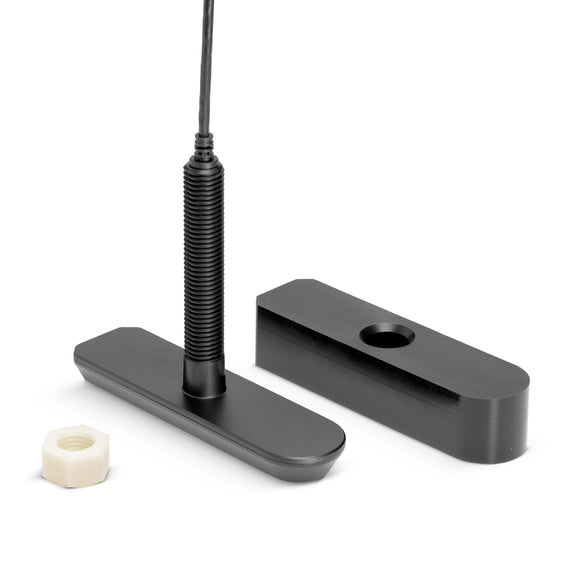

710284-1HELIX MEGA SI+, DI+, Dual Spectrum CHIRP w/ Temp Plastic Thru Hull Transducer
Plastic Thru Hull, MEGA Side Imaging+, MEGA Down Imaging+ 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor
-
Compatible with: HELIX 8 CHIRP MEGA SI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 9 CHIRP MEGA SI+ GPS G3N, HELIX 9 CHIRP MEGA SI+ GPS G4N, HELIX 10 CHIRP MEGA SI+ GPS G3N, HELIX 10 CHIRP MEGA SI+ GPS G4N, HELIX 12 CHIRP MEGA SI+ GPS G3N, HELIX 12 CHIRP MEGA SI+ GPS G4N, HELIX 15 CHIRP MEGA SI+ GPS G4N,
- Cable Length: 30 Feet
-
Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
-
Dual Spectrum CHRIP Max Depth: 1200ft (365m)
-
MEGA Side Imaging+ Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (m)
- MEGA Down Imaging+ Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
-
Dimensions: L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1"
