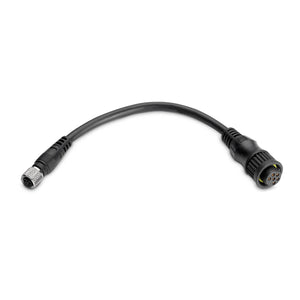

Minn Kota MKR-US2-1 Universal Sonar 2 Adapter Cable 1852061 for Garmin Fishfinders

Minn Kota MKR-US2-1 - Garmin Adapter Cable (Universal Sonar 2)

1852061
  • We have 3 in stock.
Shipping calculated at checkout.
Ships from Winnipeg Fast Canadian Shipping
No Customs Fees for Canadians
Authorized Service Center We Fix What We Sell

Compatibility:


✅ Compatible Garmin Units
Fits a variety of legacy Garmin models:
• Fishfinder Series: 80, 90, 100, 120, 140, 160, 160C, 240, 250, 250C, 300C, 320C, 340C, 400C
• GPSMAP Series: 168, 178C, 188, 198C, 430s, 431s, 530s, 531s, 535s, 536s
❌ NOT Compatible
• Built-In MEGA DI/SI: (Motors with Humminbird MEGA Imaging cannot adapt to Garmin)
• Advanced Sonar (ClearVü/SideVü): (Adapter will only transmit traditional 2D)

Connect Your Garmin to US2

If your Minn Kota trolling motor is equipped with Universal Sonar 2 (US2) and you want to view 2D sonar on your Garmin fishfinder, the Minn Kota MKR-US2-1 (1852061) adapter is the missing link. This shielded cable bridges the gap between the Minn Kota plug on the bow and the back of your display.

Interference-Free Connection:

Universal Sonar 2 wiring runs entirely inside the shaft of your trolling motor, preventing snagged cables and broken mounts. This adapter plug provides a fast, threaded, waterproof connection that shields your Garmin from electrical motor interference, keeping your screen clear of clutter.

⚠️ CRITICAL WARNINGS:
  • Additional Garmin Adapters May Be Needed: Depending on your specific head unit, you might require an extra adapter cable directly from Garmin to make this work (e.g., Garmin Part #010-10145-00, or the 8-pin to 12-pin adapter #010-12122-10).
  • 2D Sonar Only: The built-in Universal Sonar 2 is a traditional 200/83 kHz dual-beam transducer. It does NOT support Garmin ClearVü (Down) or SideVü imaging.

📦 Product Specs:

  • Part Number: 1852061 (MKR-US2-1)
  • Sonar System: Universal Sonar 2 (US2)
  • Brand Match: Garmin (Legacy Models)
  • Connection: Quick-disconnect / Waterproof
🍁 Why Buy from PTG Electronics?
We are Canada’s specialized marine electronics hub and authorized service center. Unlike American retailers, we stock our inventory in Winnipeg, Manitoba. You get your gear faster with zero customs fees or hidden duties.

Frequently Asked Questions

Will this work with my new ECHOMAP or STRIKER unit?

This specific MKR-US2-1 cable is primarily designed for older legacy Garmin models. Newer ECHOMAP or STRIKER units usually feature an 8-pin or 4-pin connection, which requires a different adapter (such as the MKR-US2-12 or MKR-US2-14). You may also need Garmin's 8-to-12 pin adapter block. Always verify your unit's pin count before purchasing.

Will this give me ClearVü or SideVü on my screen?

No. The Universal Sonar 2 (US2) built into your Minn Kota motor is strictly a 2D sonar transducer. It does not contain the specialized crystals required to produce Down Imaging or Side Imaging of any kind, regardless of what adapter cable you use.

Is the connection point waterproof?

Yes. The connection where the adapter meets the Minn Kota US2 cable features a threaded collar with an internal O-ring, making it IP68 waterproof and highly resistant to corrosion on the bow of your boat.
