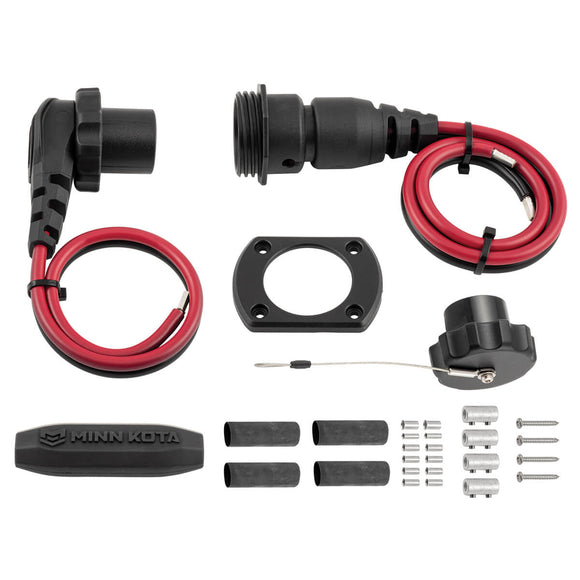

Minn Kota MKR-26 Heavy-Duty 60 Amp Waterproof Trolling Motor Plug and Receptacle

Minn Kota MKR-26 - Heavy-Duty Plug & Receptacle

1865128
  • We have 1 in stock.
Shipping calculated at checkout.
Ships from Winnipeg Fast Canadian Shipping
No Customs Fees for Canadians
Authorized Service Center We Fix What We Sell

Compatibility:

✅ Direct Fit
Ideal for high-draw systems including:
• 12V, 24V, 36V, and 48V Trolling Motor Systems
• High-Thrust 80lb and 112lb Motors (Ultrex, Terrova, Fortrex)
• New Brushless QUEST Series Motors (Instinct, Ultrex QUEST)

❌ Retrofit Note
• If you are upgrading from the older MKR-18 style plug, the mounting hole on your boat deck may need to be slightly enlarged to accommodate the heavier-duty MKR-26 receptacle footprint.

Stop Melting Plugs: Upgrade to Heavy-Duty Power

Modern trolling motors demand serious power, and standard plugs simply can't keep up. The Minn Kota MKR-26 Plug and Receptacle is a heavy-duty upgrade specifically engineered to handle continuous power ratings up to 60 amps and 48 volts. If you are running a high-thrust 112lb motor or a new brushless QUEST series motor, this plug ensures you get maximum power delivery without the risk of overheating or melting your electrical connections.

Built for the harshest marine environments, it features silver-plated terminals for ultimate corrosion resistance and a fully sealed, waterproof threaded connection that won't vibrate loose in heavy chop.

Secure your boat's electrical system by purchasing from a Canadian Authorized Service Center. We process orders directly from our Winnipeg, Manitoba hub, giving you duty-free, fast shipping across Canada with no surprise cross-border fees.

🔧 WIRING SPECS: The MKR-26 comes equipped with factory-installed 8 AWG wire leads and is designed to seamlessly splice into boat wiring ranging from 6 AWG down to 10 AWG.

📦 Product Specs:

  • Part Number: 1865128 (MKR-26)
  • Power Rating: Continuous 60 Amps (Up to 48V)
  • Environment: Fully sealed for both Freshwater and Saltwater use
🍁 Why Buy from PTG Electronics?
We are Canada’s specialized marine electronics hub and authorized service center. Unlike American retailers, we stock our inventory in Winnipeg, Manitoba. You get your gear faster with zero customs fees or hidden duties.

Frequently Asked Questions

Why do I need a 60-amp rated plug?

When running your trolling motor on high in heavy wind or current, it pulls maximum continuous amperage. Standard 40-amp or 50-amp plugs create a bottleneck, causing resistance. That resistance turns into severe heat, which causes voltage drops (slower motor speeds) and can physically melt the plastic plug to your deck. The 60-amp rating eliminates this bottleneck.

Does this plug screw together, or just push in?

The MKR-26 features a highly secure threaded collar. Once you push the male plug into the female receptacle, you twist the outer collar to lock it in place. This creates a watertight seal and ensures rough waves won't vibrate the plug loose.

Is this plug safe to use in saltwater environments?

Absolutely. The MKR-26 utilizes silver-plated electrical terminals and a fully sealed waterproof design, making it highly resistant to corrosion in both freshwater and harsh saltwater (Riptide) applications.
