RAM-202-24-202U;- Ram mount for Helix 7

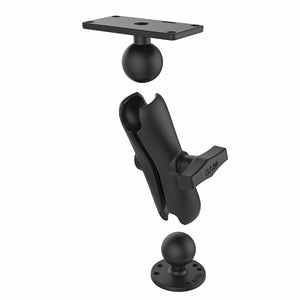

1895107The RAM-202-24-202U powder-coated, marine-grade aluminum Humminbird Helix 7 mount consists of a medium length double socket arm, a 2.5" diameter round base with a 1.5" C size ball, and one 1.5" x 3.5" rectangular plate with a 1.5" C size ball. The 1.5" x 3.5" rectangular plate contains a 4-hole pattern. Rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle. Compatible with the Humminbird Helix 7.
PRODUCT DIMENSIONS
Overall Height: 7.35"
SOCKET-TO-SOCKET LENGTH
4.66"
HOLE PATTERN
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter
Rectangular Plate: 1.5" x 3.5"
Rectangular Plate: 1.5" x 3.5"
PLATE SIZE
Top Plate: 2" x 4"
Bottom Plate: 2.5" Diameter
Bottom Plate: 2.5" Diameter
BALL/SOCKET SIZE
C Size (1.5")
