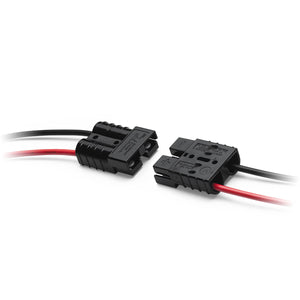

Minn Kota MKR-20 Heavy Duty Trolling Motor Plug and Receptacle

Minn Kota MKR-20 Trolling Motor Quick Connect Plug (60A)

1865107
  • We have 2 in stock.
Shipping calculated at checkout.
Ships from Winnipeg Fast Canadian Shipping
No Customs Fees for Canadians
Authorized Service Center We Fix What We Sell

Compatibility:

✅ Compatible Systems
Universal design works with any 2-wire trolling motor setup:
• 12-Volt Systems (Endura, PowerDrive 55, etc.)
• 24-Volt Systems (Terrova 80, Ulterra 80, etc.)
• 36-Volt Systems (Terrova 112, Ulterra 112, Ultrex)
• Accepts 8 Gauge or 10 Gauge Wire

❌ NOT Compatible
• 3-Wire Systems (Older 12/24V switchable motors)
• Hardwire Installations (Direct to battery)
• Gauge smaller than 10 AWG (Loose fit)

Quick Power Connection

Rigging your boat shouldn't be a permanent commitment. The Minn Kota MKR-20 Quick Connect Plug allows you to easily disconnect your trolling motor for charging, storage, or theft prevention. This heavy-duty system includes both the boat-side receptacle and the motor-side plug.

Built for High Amps:

Modern 24V and 36V motors draw significant current. The MKR-20 is rated for up to 60 Amps, ensuring safely powered connections without voltage drop or overheating.

📦 Product Specs:

  • Part Number: 1865107 (MKR-20)
  • Amperage Rating: 60 Amps (Continuous)
  • Wire Gauge: Accepts 8 to 10 AWG Wire
  • Design: Waterproof / Corrosion Resistant
  • Includes: Plug, Receptacle, Splicer Kit, Heat Shrink
🍁 Why Buy from PTG Electronics?
We are Canada’s specialized marine electronics hub and authorized service center. Unlike American retailers, we stock our inventory in Winnipeg, Manitoba. You get your gear faster with zero customs fees or hidden duties.

Frequently Asked Questions

Will this handle my 112lb thrust motor?

Yes. The 112lb thrust motors (36V) can draw up to 52 Amps at full throttle. This plug is rated for 60 Amps continuous, making it fully safe and recommended for even the largest electric steer motors.

Is it waterproof?

Yes. It features a sealed design with a watertight cap for the receptacle when the plug is removed. This prevents saltwater or rain from corroding the terminals when the motor is off the boat.

How do I connect the wires?

The kit includes a butt-connector splicing set with heat shrink tubing. You strip your existing motor wires, crimp them into the plug's leads, and seal them with the heat shrink for a permanent, water-tight bond.
