Humminbird XI 9 20 Dual Beam Ice Transducer for Gen 1 Helix

Humminbird XI 9 20 Ice Transducer (Dual Beam / Non-CHIRP)

710211-1
  • We have 2 in stock.
Shipping calculated at checkout.
Ships from Winnipeg Fast Canadian Shipping
No Customs Fees for Canadians
Authorized Service Center We Fix What We Sell

Compatibility:

✅ Compatible Humminbird Units (Non-CHIRP)
This transducer is designed for units that use standard 2D Dual Beam sonar:

  • Helix 5 & 7: Gen 1 Models Only (Sonar/GPS)
  • PiranhaMax: 100, 200, 4, 4 DI
  • Matrix Series: 10, 12, 15, 17, 20, 27, 35, 37, 55, 65, 67, 77, 87, 97
  • Legacy Series: 300, 500, 700, 800, 900, 1100 Series (Non-CHIRP models)
  • ICE Flashers: It can work with ICE 35/45/55, but the XI 9 19 is the specific factory match for those flashers.

❌ NOT Compatible (or Recommended)

Get your classic Humminbird flasher or sonar ready for the hard water with the official Humminbird XI 9 20 Ice Transducer. This rugged, weighted puck uses standard Dual Beam sonar (200/83 kHz) to deliver reliable depth and jig tracking on older and non-CHIRP units.

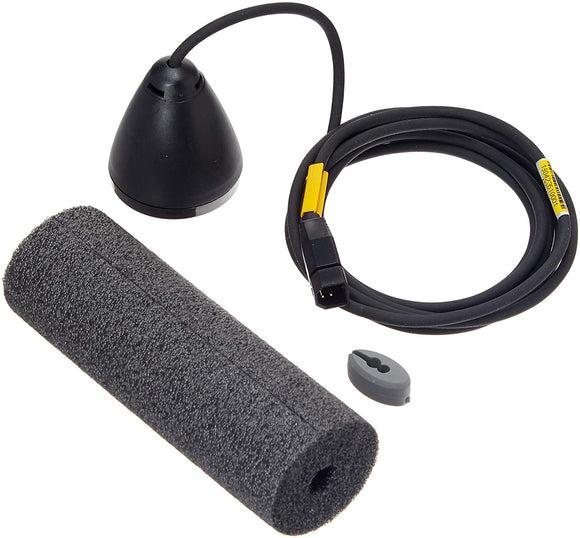

Includes the transducer, 8-foot cold weather cable, and the float assembly to position your ducer perfectly in the ice hole.

Product Features

  • Dual Beam Sonar: Select between 20° (Precision) and 60° (Wide Coverage) beams to find fish or watch your jig.
  • Complete Kit: Includes the float and stopper assembly.
  • Legacy Fit: The standard 2-pin connector fits almost all Humminbird units from 2000-2016.
🍁 Why Buy from PTG Electronics?
We are Canada’s specialized marine electronics hub and authorized service center. Unlike American retailers, we stock our inventory in Winnipeg, Manitoba. You get your gear faster with zero customs fees or hidden duties.

Frequently Asked Questions

Will this work on my Helix 5 G2?

Technically yes, but you will lose the "CHIRP" features that make the G2 special. We highly recommend buying the XI 9 1521 instead for that unit.

Is this good for the PiranhaMax 4?

Yes! This is the perfect ice upgrade for the portable PiranhaMax 4.

Does it have the temperature sensor?

No. Like most ice transducers, this is sonar-only.
