XM 9 HW MDI T

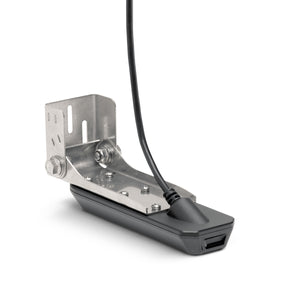

710280-1HELIX MEGA DI+, Dual Spectrum CHIRP w/ Temp Transom Transducer
Transom Mount, MEGA Down Imaging+ 800kHz/455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor
-
Compatible with: HELIX 9 / 10 / 12 CHIRP MEGA DI+ G3 / G3N and newer models
-
Cable Length: 20 Feet
-
Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
-
Dual Spectrum CHIRP Max Depth: 1200ft (365m)
-
Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m),
-
800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
