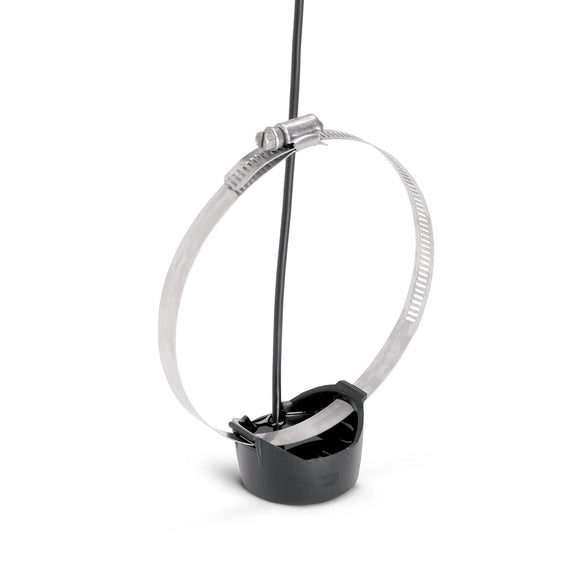

Humminbird XTM 9 HW T Trolling Motor Transducer (HELIX)
710277-1Compatibility:
The "High Wide" Front End
Upgrade the sonar on your bow. The Humminbird XTM 9 HW T is the specific trolling motor transducer designed to deliver Dual Spectrum CHIRP (High Wide) 2D sonar from the front of your boat. Its low-profile, curved shape fits snugly against the motor housing to minimize drag and snagging.
Superior Target Separation:
Unlike older standard transducers, the "HW" element covers a wider area of the bottom and separates fish arches from structure with incredible clarity. It also includes a built-in temperature sensor.
📦 Product Specs:
- Part Number: 710276-1 (XTM 9 HW T)
- Mount Type: Trolling Motor (Hose Clamp Included)
- Sonar Type: Dual Spectrum CHIRP (2D Only)
- Cone Angle: Wide (42°) & Narrow (25°)
- Connector: 7-Pin (HELIX Standard)
We are Canada’s specialized marine electronics hub and authorized service center. Unlike American retailers, we stock our inventory in Winnipeg, Manitoba. You get your gear faster with zero customs fees or hidden duties.
Frequently Asked Questions
Does this have Down Imaging?
No. This is a 2D Sonar Only transducer. It provides the traditional sonar view (fish arches) and depth reading. It does not have the crystals for Down Imaging or Side Imaging.
Can I use this on my transom?
No. This is the XTM (Trolling Motor) version. The top of the transducer is curved to fit a round motor housing. It does not come with a transom bracket. You need the XM 9 HW T for transom mounting.
Will this work on my older HELIX 5 G1?
Likely not effectively. The G1 series was not designed for "Dual Spectrum CHIRP" (High Wide). It expects standard 83/200 kHz frequencies. While you might get a depth reading, you won't get the clarity this transducer is capable of, and it may not identify correctly in the menu.
